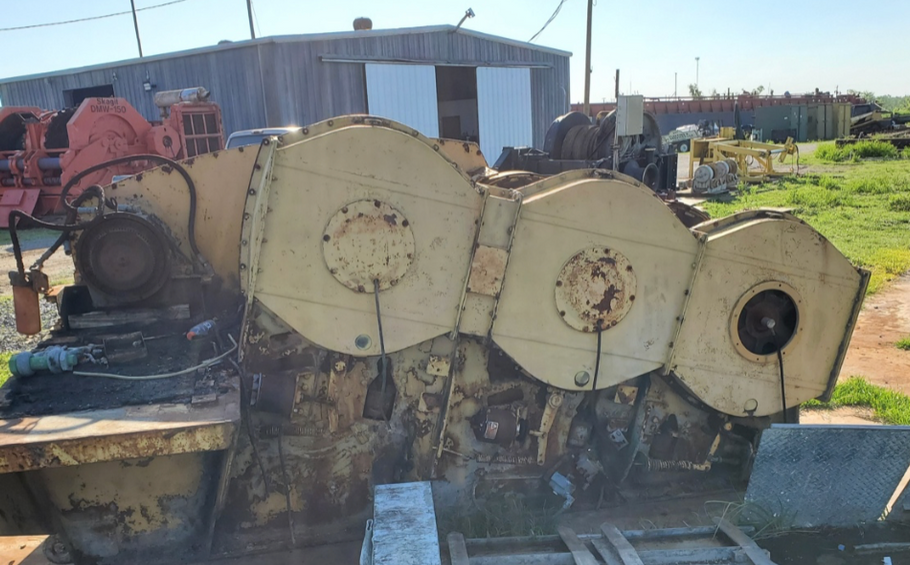

American 210 Triple Drum Waterfall Winch

Description:

SKID: 140” Long X 54” Wide @ front/ 76” Wide @ rear X 84” High

Overall: 140” X 76” X 84”

First layer line pull, cable diameter, drum cable capacity on all drums:

Estimated 50K# line pull at stall,

15K# line pull on top layer with Torque Converter.

1300’ of 1” wire rope capacity.

Reversing accomplished through power load lowering with TQ.

OPTIONAL 3 speed forward and reversing transmission:

Allison CRT 3331-3 or equal Forward & Reversing Transmission.

Estimated 60K# line pull as stall, 20K# line pull on top layer.

Call for more details! (850) 255-5266
